Bain Circuit

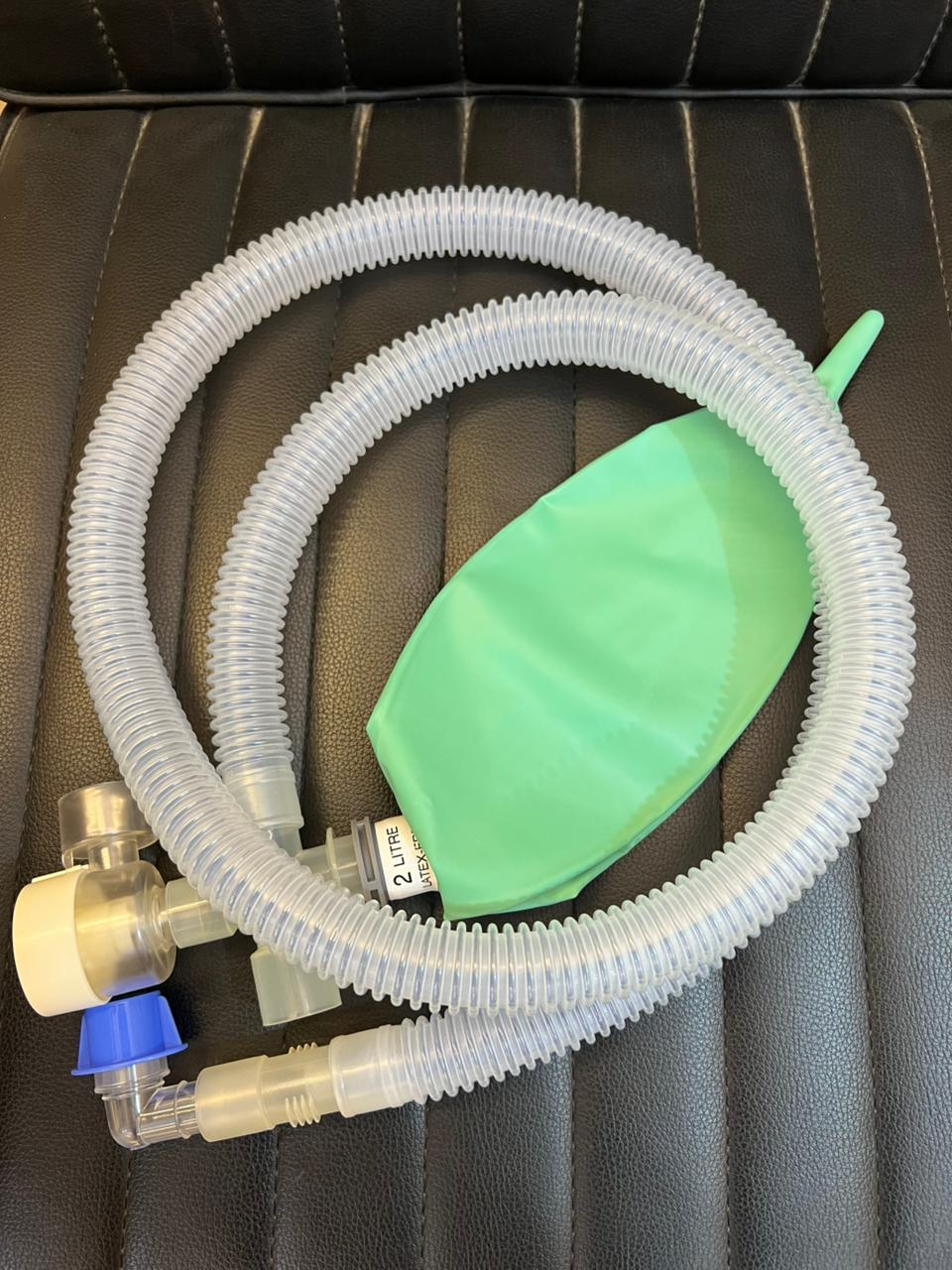

Bain Circuit (SH-2088)

• A co-axial modification of the basic "T"-piece system, developed to facilitate scavenging of waste gases.
• The process includes patient inspiring fresh gas from the outer reservoir tube and expiring into reservoir tube.
• Convenient, lightweight anesthesia delivery system.
• It is based on Mapleson "D" system, provided with a corrugated tube, expiratory valve and antistatic bag.
• The modification improves clinical utility.
• It is simpler, has single tube convenience and low resistance to breathing.
• Compact and inexpensive with low dead-space.
• Sterile and individually packed.

UNIT CONSISTS OF :

• 22mm Cap
• 22mm corrugated tube 1.6 metres long
• 22mm expiratory valve
• 2 litres antistatic rebreathing bag
• Standard connectors
• Green Tube

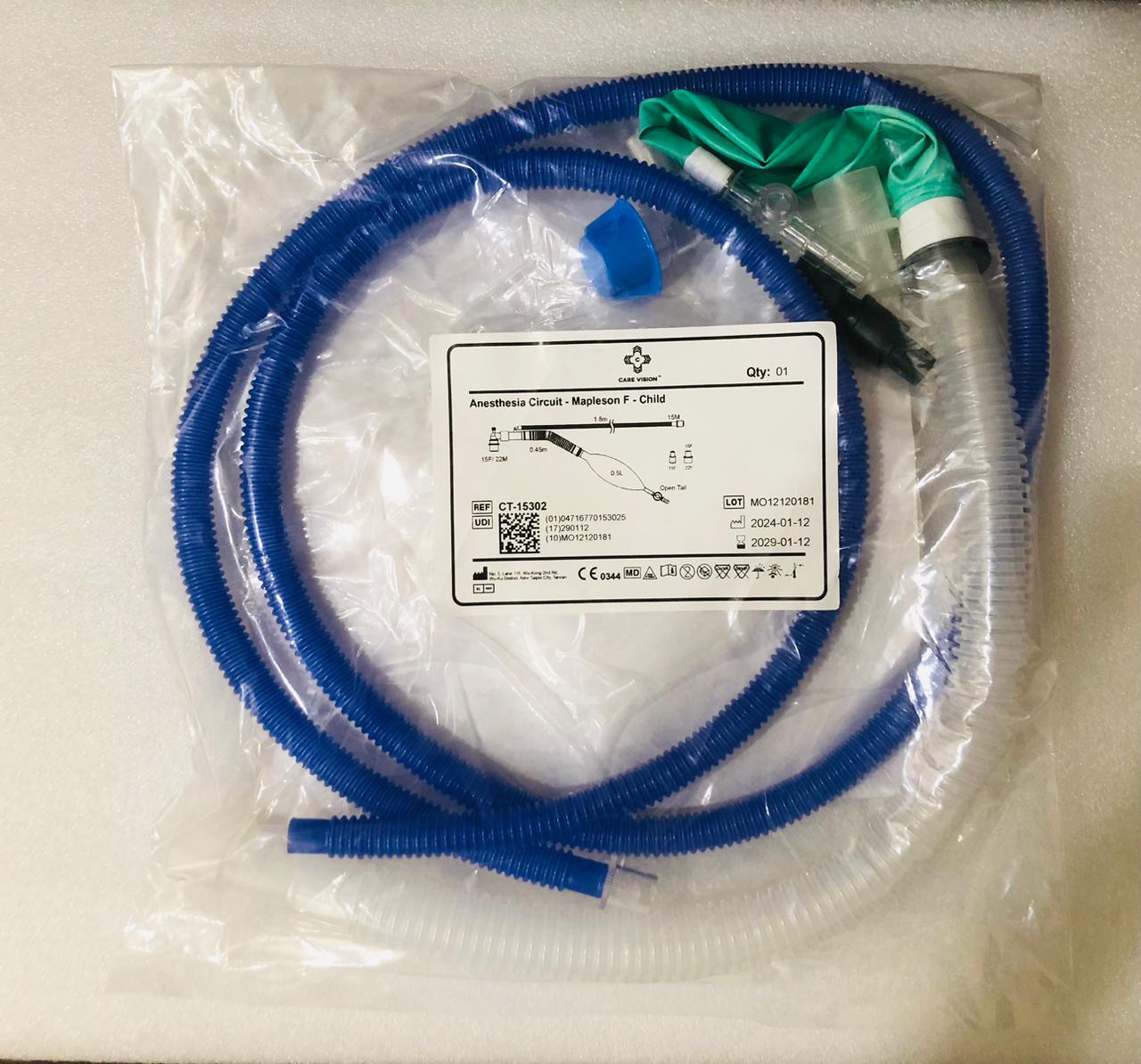

Paediatric Anesthesia Circuit (SH-2089)

• It is based on Mapleson "F" system, provided with 15 and 10 mm corrugated tube with a 0.5 ltr antistatic Rebreathing Bag and a bag bleed valve.

UNIT CONSISTS OF :

• 22mm Cap
• 15mm corrugated tube, 0.42 metres long
• 10mm corrugated tube, 2 metres long
• Expiratory valve
• 0.5 litres antistatic rebreathing bag
• Standard connectors
• Extra circuit adopters
