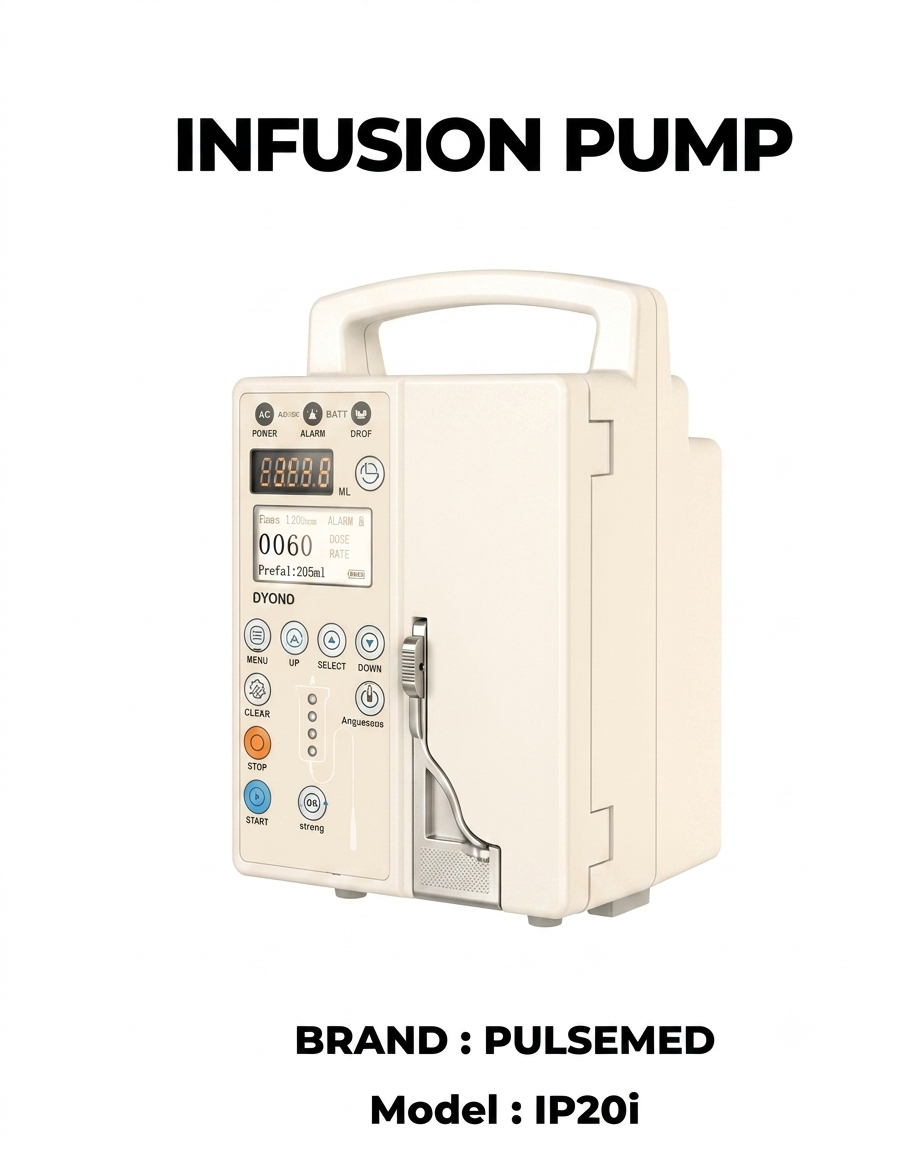

INFUSION PUMP

TECHNICAL SPECIFICATION

• INFUSION RATE ML/H MODE: 1~1200ML/H D/MIN MODE: 1~266 D/MIN

• FF RATE 100~1200ML/H(100ML/STEP)

• UNIT CONVERSION D/MIN AND ML/H UNIT CAN BE CONVERT

• VTBI (VOLUME TO BE INJECTED) 1~9999ML

• KVO RATE 1~5.0M

• CUMULATIVE INFUSION VOLUME 0~9999.9ML

• INFUSION ACCURACY D/MIN MODE: ≤±3% (AFTER CALIBRATION)ML/H MODE: ≤±5% (AFTER CALIBRATION)

• ALARMS INFORMATION INFUSION FINISH, TUBE IS BLOCKED, THERE ARE BUBBLES, CLOSE THE DOOR, LOW BATTERY, BATTERY RUNNING OUT, SENSOR PULLED OUT, ABNORMAL OPERATION

• AIR BUBBLE SIZE ≤25μL

• ALARMS INFORMATION INFUSION FINISH, TUBE IS BLOCKED, THERE ARE BUBBLES, CLOSE THE DOOR, LOW BATTERY, BATTERY RUNNING OUT, SENSOR PULLED OUT, ABNORMAL OPERATION.

• POWER SOURCE THREE OPTIONS FOR POWER SUPPLYFIRST: 100~240VAC, 50/60HZ; SECOND: INSERTED LI BATTERY 11.1V, CAPACITY ≥1800MAH; 4 HOURS BACKUPTIME AT THE RATE OF 25ML/H FOR A FULLY CHARGED BATTERY.THIRD: EXTERNAL DC 12V POWER SUPPLY

• DRUG LIBRARY UP TO 1000 DRUGS ARE PROVIDE

• DIMENSIONS 153MM (L) ×162MM (W) ×227MM (H)

FEATURES:

• 128*64 HD LCD DISPLAY, HIGH CAPACITY WORDS, FRIENDLY USER INTERFACE, DYNAMICALLY DISPLAY WORKING STATUS

• IP20I CAN STORE 2000PCS OF INFUSION RECORDS AND HAS DRUG LIBRARY WITH 600DRUGS

• COMPATIBLE WITH ANY BRANDS OF INFUSION SETS AFTER CORRECT CALIBRATION

• PRESET SOLUTION VOLUME TO GREATLY REDUCE THE WORKLOAD OF NURSES

• WORK MODE: ML/H AND DROP/MIN CAN SWITCH FREELY

• THREE LEVELS OF OCCLUSION: HIGH, MIDDLE AND LOW

• PURGE /BOLUS FUNCTION

• KVO (KEEP-VEIN-OPEN) AUTOMATICALLY OPENS AS INFUSION IS COMPLETED, KVO RATE IS 1ML/H---5ML/H (1ML/H STEP)

• AUTOMATICALLY RECORD THE SETTINGS OF LAST INFUSION

• APPLICATION SCOPE:

• TRADITIONAL INTRAVENOUS, ANESTHETIC, ANTICOAGULANT INJECTION AND CHEMOTHERAPY FOR PATIENTS. IT CAN ALSO BE APPLIED IN ICU AND CCU ETC
