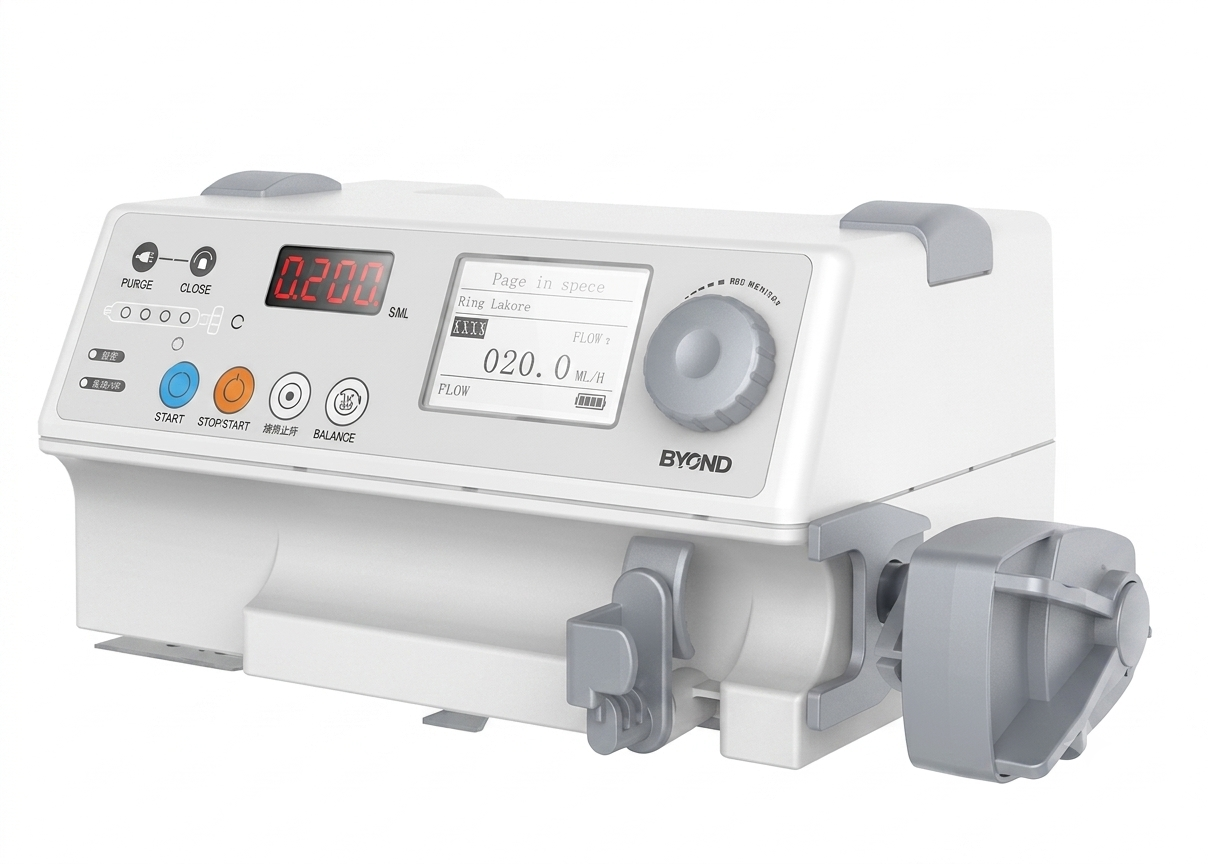

SYRINGE PUMP

SYRINGE PUMP

Rs.75,000.00
Rs.80,000.00 Rs.75,000.00
Sale Sold out
Shipping calculated at checkout.



BRAND: PULSEMED

Model: SP20i

SYRINGE PUMP

Description

  • SYRINGE PUMPS ARE USED TO DELIVER A VERY SMALL AMOUNT OF MEDICATIONS, MECHANICALLY MOVING THE PISTON OF A SYRINGE TO SEND MEDICATION INTO IV TUBING

  • SYRINGE PUMP IS THE BEST SYRINGE PUMP USED BY MANY HOSPITALS, CLINICS WORLDWIDE. THE BEST THING ABOUT SYRINGE PUMP IS THAT IT DELIVERS AN ACCURATE AMOUNT OF FLUID, THE ACCURATE AMOUNT OF ITS ACCURACY ENSURES COMPATIBILITY WITH ALL BRANDS OF SYRINGES 0-10ML. THREE WORKING MODES RATE, TIME AND DOSE PROVIDES THE BEST ADVANTAGE TO THE PARAMEDIC STAFF.

Features

  • COMPATIBLE WITH ANY BRAND OF SYRINGE 10ML, 20ML, 30ML, 50/60ML AFTER CALIBRATION

  • ONE-KEY OPERATION MAKES SETUP EASY AND SIMPLE

  • 240*160 HD LCD DISPLAY, FRIENDLY USER INTERFACE

  • ENGLISH

  • THREE WORKING MODES: RATE MODE, TIME VOLUME MODE, DOSAGE WEIGHT MODE

  • PURGE, BOLUS, ANTI-BOLUS AND KVO FUNCTION

  • AUTOMATICALLY RECORD THE SETTINGS OF LAST INJECTION;

  • SP20i CAN STORE 2000PCS OF INFUSION RECORDS AND HAS A DRUG LIBRARY WITH 600 DRUGS.

  • THREE WORKING MODES: RATE/TIME/DOSE

  • STRONG METALLIC, VERTICAL AND HORIZONTAL MOUNTING CLAMP.

  • ANTI-BOLUS SYSTEM

  • DPS OCCLUSION PRESSURE DISPLAY

  • KVO/BOLUS FUNCTION

  • LARGE COLOR LCD DISPLAY

  • DATE STORAGE IN CASE OF POWER LOSS OR SURGE.

  • 3.5 INCH LCD SCREEN FOR CLEAR VISION WITHIN 5 METERS.

  • SPA 112 MEDEVO SYRING PUMP SPECIAL DESIGNED EXTENSION LINE GRIP

  • ONE-BUTTON NIGHT MODE DESIGN FOR PATIENT'S MORE COMFORTABLE REST AT NIGHT

  • COMPATIBLE WITH DIFFERENT BRANDS OF 5,10,20/30, 50/60 ML SYRINGES

  • FREE STACKING OF SINGLE SYRINGE PUMPS FOR EASY SPACE STATIONS IN ICU, NICU, OT ETC.

  • LARGE & COLORFUL LCD DISPLAY




  • HISTORY RECORDS




  • RS 232 INTERFACE




  • ADJUSTED BUZZER VOLUME




  • ANTI BOLUS VOLUME




  • VARIOUS VISUAL AND AUDIBLE ALARMS




  • 90 DEGREE ROTATABLE POLE CLAMP




  • SPECIFICATION:




  • INFUSION MODE: RATE MODE, TIME MODE, DOSE MODE, INTERMITTENT INFUSION MODE, TIVA




  • APPLICABLE SYRINGES: VARIOUS BRAND OF STERILE SYRINGES 5ML, 10ML, 20ML, 30ML, 50/60ML




  • SYRINGE ACCURACY: +- 2%




  • INFUSION RATE: 5ML SYRINGE 0.1-150ML/H




  • 10ML SYRINGE 0.1-300ML/H




  • 20ML SYRINGE 0.1-600ML/H




  • 30ML SYRINGE 0.1-900ML/H




  • 50ML SYRINGE 0.1-1500ML/H




  • VOLUME TO BE INFUSED: 0-9999.9(ML)




  • VOLUME INFUSED: 0-9999.9(ML)




  • KVO RATE: 0.1-2ML/H ADJUSTABLE DEFAULT VALUE: 0.1ML/H




  • BOLUS RATE: 5ML SYRINGE 100-150ML/H




  • 10ML SYRINGE 100-300ML/H




  • 20ML SYRINGE 100-600ML/H




  • 30ML SYRINGE 100-900ML/H




  • 50ML SYRINGE 100-1500ML/H




Technical specification

INFUSION RATE

  • 50/60ML SYRINGE: 0.1ML/H--1500ML/H(0.1ML/H STEP)

  • 30ML SYRINGE: 0.1ML/H---900ML/H(0.1ML/H STEP)

  • 20ML SYRINGE: 0.1ML/H---600ML/H(0.1ML/H STEP)

  • 10ML SYRINGE 0.1ML/H---300ML/H(0.1ML/H STEP)

RATE ACCURACY

  • WITHIN±3%(AFTER CORRECT CALIBRATION)

MECHANICAL ACCURACY

  • WITHIN±2%

BOLUS RATE

  • 50(60)ML SYRINGE:1200ML/H




  • 30ML SYRINGE:720ML/H




  • 20ML SYRINGE:480ML/H




  • 10ML SYRINGE:240ML/H




VOLUME LIMIT

  • 0.1ML---9999.9ML(0.1ML STEP)




TOTAL INJECTION

  • 0.1ML---9999.9ML(0.1ML STEP)




MAXIMUM INFUSION PRESSURE

  • 150KPA




OCCLUSION

  • HIGH 800MMHG±200MMHG(106.7KPA±26.7KPA)




  • MEDIUM 500MMHG±100MMHG(66.7KPA±13.3KPA)




  • LOW 300MMHG±100MMHG(40.7KPA±13.3KPA)




AUDIBLE AND VISIBLE ALARMS

  • OCCLUSION, EQUIPMENT FAILURE, SOFTWARE EXCEPTION, INJECTION FINISH, LIMITED FINISHED, BATTERY RUNNING OUT, IMPROPERLY INSTALLED, ABNORMAL OPERATION ECT.




POWER SOURCE

  • 100-240VAC, 50/60HZ; INTERNAL RECHARGEABLE LI BATTERY, CAPACITY ≥1800MAH, VOLTAGE=11.1V, 4 HOURS BACKUP TIME AT THE RATE OF 25ML/H(APPOINTED MEDIUM RATE IN IEC60601-2-24) FOR THE NEW BATTERY CHARGED FOR 12 HOURS. TO FACILITATE THE USE IN SOME SPECIAL OCCASIONS, THE MACHINE'S DC OUTLET CAN BE AN EXTERNAL DC 12V 2A STANDBY POWER SUPPLY.

KVO SPEED

  • 0.1-5M/H(0.1ML/H STEP)

POWER CONSUMPTION

  • 35VA

FUSE

  • T2AH/250V, 2PCS INSTALLED

SYRINGE

  • COMPATIBLE WITH 10ML, 20ML, 30ML, 50/60ML SYRINGE OF ANY BRANDS AFTER CORRECT CALIBRATION

DIMENSION

  • 280MM(L)*210MM(W)*130MM(H)

NET WEIGHT


  • 2.2KG
